25.6V 100AH 2560WH LIFEPO4 IP65 RATED VOLTGO BATTERY WITH BLUETOOTH/CAN/RS485 COMMUNICATIONS SUPPORT AND SCALABILITY UP TO 40.96KWH SYSTEMS

25.6V 100AH 2560WH LIFEPO4 IP65 RATED VOLTGO BATTERY WITH BLUETOOTH/CAN/RS485 COMMUNICATIONS SUPPORT AND SCALABILITY UP TO 40.96KWH SYSTEMS

$1,799.00 Inc. GST

| Be the first to review this product

EACH

Stores: Call Store

Manufacturer: VGo

SKU: VLRV2560B

increase decrease

Important Note:

This is a special order item and may take 7-10 business days to be despatched.

Please be aware that additional delays may occur depending on the manufacturer's availability. We will confirm the estimated time of arrival (ETA) once your order is placed. Alternatively, you can contact us directly to inquire about the ETA prior to placing your order.

Cancellation of a special order item will incur a restocking fee and in some cases, we may be unable to provide a refund at all.

VoltGo VLRV2560 Modules
Specifications
Contact Us

VOLTGO VLRV2560

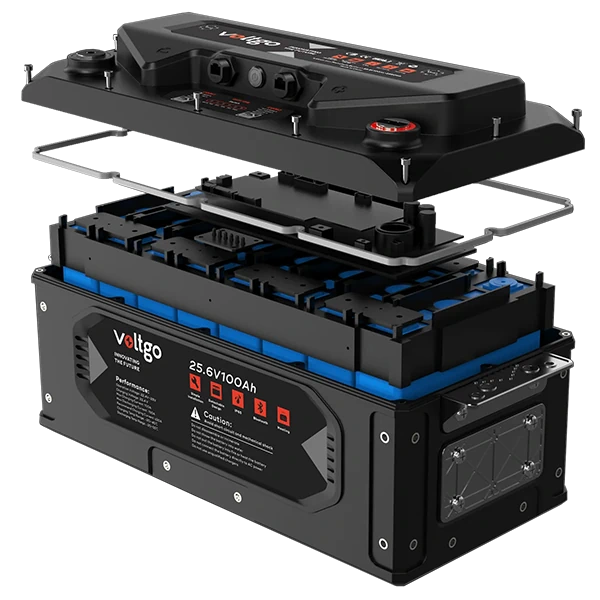

The VoltGo VLRV2560 is an advanced Lithium Iron Phosphate (LiFePO4) battery module with superior cycle life, designed for use in stand-alone or multiple-module applications.

Featuring a high quality flame retardant ABS casing, rated to IP65 and suitable for use in Marine and high moisture prone environments, the VoltGo modules provide a lightweight and maintenance free alternative to traditional lead acid deep cycle batteries in small stationary off-grid solar power systems, to mobile applications such as 4x4's, caravans and marine vessels. The unique incorporated mounting plates provide a number of diverse installation options whilst offering strengthened battery stability.

The advanced safety features include an intelligent BMS with protections against short circuit, over/under voltage and over/under temperature fluctuations, all encased in flame retardant ABS casing with an in-built aerosol fire suppression system as a final line of defence to ensure safe operation and swift fault mitigation.

When temperatures drop below 0°C and your battery is connected to external power, VoltGo's heating capabilities kick in to keep your battery between 0°C and 45°C, to enable charging and discharge at temperatures as cold as -20°C.

Capable of being used individually, or expandable into systems of up to 16 in parallel, the VoltGo VLRV2560 is adaptable to suit varied system sizes, with it's intelligent BMS taking care of the system performance.

With both Bluetooth output for battery parameter monitoring from your smart device, to the on-board RS485/CAN ports to integrate into larger systems via a Victron GX device, the VoltGo modules provide real-time monitoring and control to ensure optimum performance.

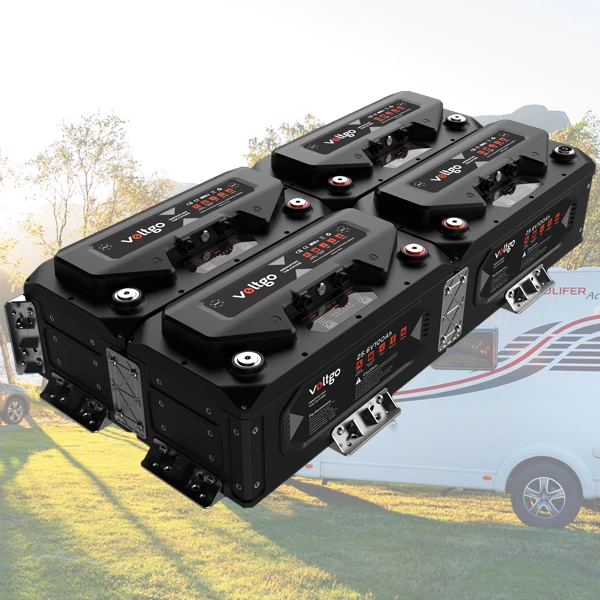

Easy System Expansion

This VoltGo VLRV2560 Lithium Iron Phosphate battery can be connected in up to 16 in parallel (16P) - NO SERIES Connection allowed. *See Product User Manual or Datasheet for more information.

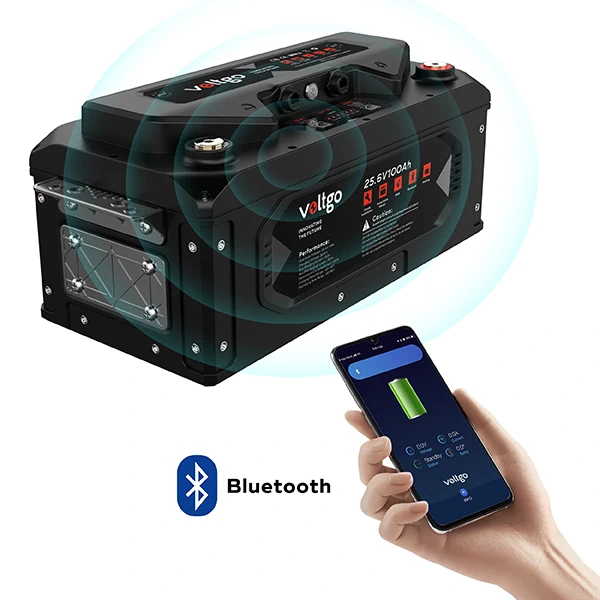

Let Your Battery Talk to You

No more guesswork! Connect to your battery from your phone or tablet for real-time monitoring of your battery's status, including voltage, state of charge, consumption, health and cycle count.

Intelligent BMS

Worry less about your battery with the smart battery management system, which offers protection against short circuit, over/under voltage and over/under temperature fluctuations. When multiple modules are used in a system, the self-balancing function also keep all batteries working together to extended service life.

Fire Protections

VoltGo batteries lead the way in safety with their UL94 V-0 rated flame retardant cases, and in-built aerosol fire suppression system as the last line of defence to ensure safe operation and swift fault mitigation.

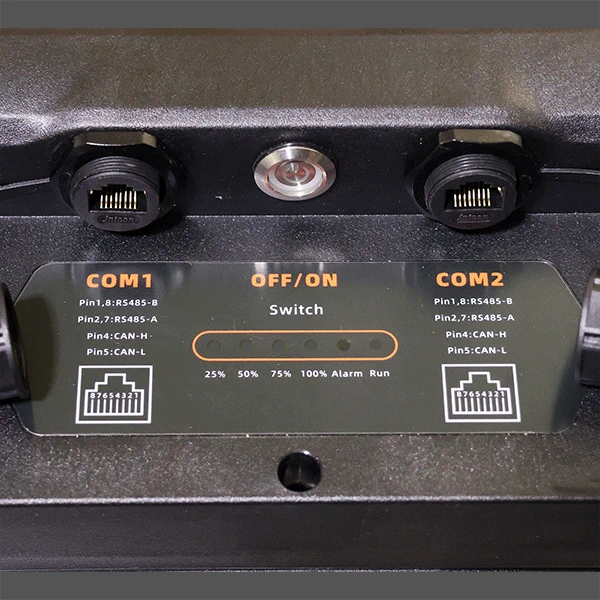

Smart Integration

The top mounted panel features an ON/OFF switch, State of Charge indicator, Alarm and Function LEDs. The 2 CAN/RS485 Comms Ports integrate your VoltGo batteries into existing control/monitoring systems, via a Victron Energy GX device*, to give full visibility and tracking. *The VLRV2560 and VLRV5120 series batteries support communication with Victron inverters via Cerbo GX and Victron Energy Ekrano GX by Victron Energy VE.Can to CAN battery cannot directly plug into the Victron inverter

SMART-GO Fastening System

Removable handy brackets come fixed to the batteries for use as handles during transport. VoltGo batteries come standard with numerous nutserts fitted within the case to utilise the included brackets and fish plates to securely fasten your battery to the floor, wall, or to other batteries when connected together. Expandable up to 16 batteries in Parallel, the VLRV2560's intelligent BMS ensures all modules within the system are balanced and working together.

IP65 Water and Dust Resistant

Ensure peace of mind during your next fishing or water sports adventure. The VLRV2560 is IP65 protected against dust and offer significant protection against water splashes and sprays, making them suitable for nearly any application.
